Description

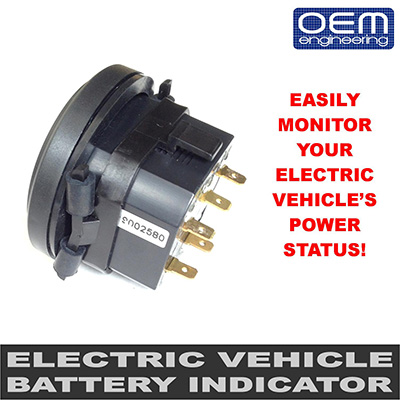

Install a battery level indicator in your electric vehicle to easily monitor your reserve power! Low drain led's show just how much juice you have left to spare you from long walks and unfavorable situations.

EASY INSTALL

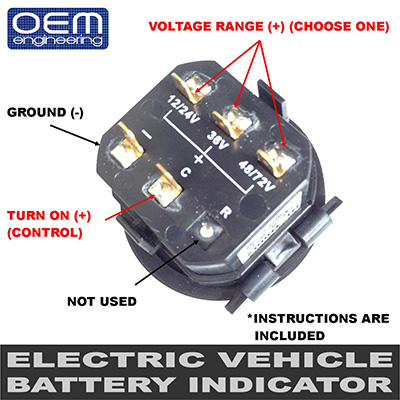

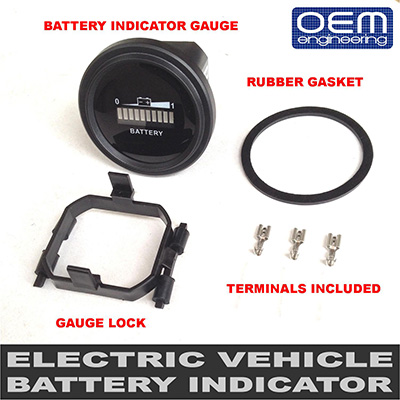

Simply cut out a 2" hole to mount, wire up following the diagram in the included instructions, and you're done!

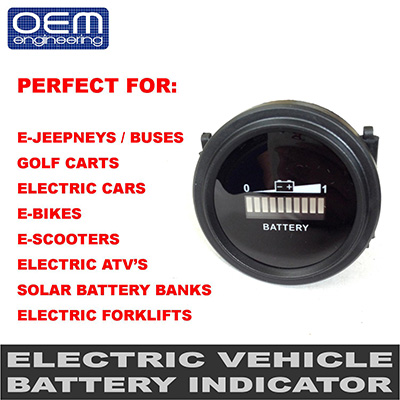

USES

E-JEEPNEYS / BUSES
GOLF CARTS
ELECTRIC CARS
E-BIKES
E-SCOOTERS
ELECTRIC ATV'S
SOLAR BATTERY BANKS
ELECTRIC FORKLIFTS

SPECIFICATIONS:

HOLE CUT OUT: 50mm (2IN.)
MOUNTING DEPTH: 40mm
CURRENT: 20mA nominal

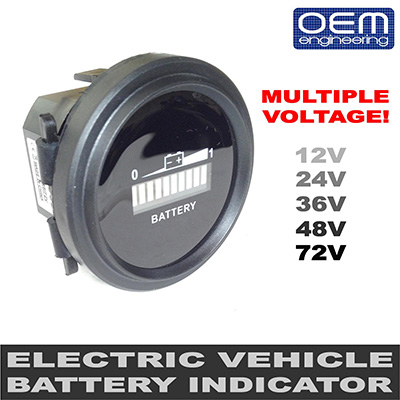

OPERATING VOLTAGE: 12V, 24V, 36V, 48V, 72V
OPERATING TEMPERATURE: -40 C TO +85 C
LED SEGMENTS: 1 RED, 2 YELLOW, 7 GREEN
DIMENSIONS: 60mm (FACE DIAMETER) x 50mm (TOTAL DEPTH FROM FACE TO TERMINAL)

Price: PhP1,500 / pc.

*NOTES:

-MAKE SURE TO VERIFY BATTERY VOLTAGE BEFORE INSTALLATION. CONNECT WIRE ONLY TO APPROPRIATE VOLTAGE RANGE TO AVOID DAMAGE TO THE UNIT.
-AT 20% REMAINING POWER, 2ND LED FROM THE LEFT (YELLOW) WILL FLASH AS A WARNING
-AT 10% REMAINING POWER, 1ST AND 2ND LED FROM THE LEFT (RED AND YELLOW) WILL FLASH AS A WARNING
-FOR DC VOLTAGE USE ONLY
